クリック署名：アドネットワーク向け

OneLinkクリックURLの例：

https://yourbrand.onelink.me/qsWL?pid=mediasource_int&advertising_id=12345678-1234-1234-1234-123456789012
&af_ad_type=video&af_adset=MMP&clickid=sdkfjasksjskdfj9845weh&af_siteid=my_site&af_viewthrough_lookback=2h&c=my_campaign
&expires=1689695615

署名のJSONオブジェクトの例（ブランクスペースを削除する前）：

[
	["link_domain","yourbrand.onelink.me"],
	["link_path","qswl"],
	["pid","mediasource_int"],
	["af_siteid","my_site"],
	["clickid","12345"],
	["expires","1689695615"]
]

署名のJSONオブジェクトの例（ブランクスペースを削除した後）：

[["link_domain","yourbrand.onelink.me"],["link_path","qswl"],["pid","mediasource_int"],["template-id","qswl"],["af_siteid","my_site"],["clickid","12345"],["expires","1689695615"]]

署名付きの最終クリックURL:

https://yourbrand.onelink.me/qsWL?pid=mediasource_int&advertising_id=12345678-1234-1234-1234-123456789012
&af_ad_type=video&af_adset=MMP&af_siteid=my_site&af_viewthrough_lookback=2h&c=my_campaign
&expires=1689695615
&signature_v2=WIfCmfLAPSsVrBTqCqfihMeLCnbE4dIAlhHF84WsiWA

[
  {"index":1, "name":"pid", "mandatory":true},
  {"index":2, "name":"af_prt", "mandatory":false},
  {"index":3, "name":"af_siteid", "mandatory":true},
  {"index":4, "name":"clickid", "mandatory":true},
  {"index":5, "name":"expires", "mandatory":true},
  {"index":6, "name":"af_engagement_type", "mandatory":false},
  {"index":7, "name":"af_click_lookback", "mandatory":false},
  {"index":8, "name":"af_viewthrough_lookback", "mandatory":false},
  {"index":9, "name":"af_reengagement_window", "mandatory":false},
  {"index":10, "name":"is_retargeting", "mandatory":false},
  {"index":11, "name":"af_ip", "mandatory":false},
  {"index":12, "name":"advertising_id", "mandatory":false},
  {"index":13, "name":"oaid", "mandatory":false},
  {"index":14, "name":"fire_advertising_id", "mandatory":false},
  {"index":15, "name":"idfa", "mandatory":false},
  {"index":16, "name":"idfv", "mandatory":false}
]

package main

import (
	"crypto/hmac"
	"crypto/sha256"
	"encoding/base64"
	"encoding/json"
	"errors"
	"fmt"
	"io"
	"net/url"
	"os"
	"strings"
	"time"
)

type Param struct {
	Name      string
	Mandatory bool
}

func LoadSupportedParams() ([]Param, error) {
	path := "./signing-supported-params.json"
	jsonFile, _ := os.Open(path)
	defer jsonFile.Close()
	byteValue, err := io.ReadAll(jsonFile)
	if err != nil {
		return nil, errors.New("failed loading " + path)
	}
	var params []Param
	_ = json.Unmarshal(byteValue, &params)
	return params, nil
}

func computeHmac256(message, secret string) (res string, errResult error) {
	defer func() {
		if r := recover(); r != nil {
			errResult = r.(error)
			fmt.Println("failed to invoke ComputeHmac256. err: %+v", errResult)
			res = ""
			return
		}
	}()

	key := []byte(secret)
	h := hmac.New(sha256.New, key)
	h.Write([]byte(message))
	return base64.URLEncoding.WithPadding(base64.NoPadding).EncodeToString(h.Sum(nil)), nil
}

// this function accepts a click url, a ttl for the click in seconds, and the list of supported params
// the function:
// 1. adds the expiration to the click based on the provided ttl
// 2. builds a json for the signature
// 3. create an HMAC256 signature
// 4. adds the signature to the click url
func signURLV2(originalURL string, secret string, clickTtlSeconds int64, supportedParams []Param) (signedURL string, err error) {

	//add an expiration to the click
	expires := time.Now().UTC().Unix() + clickTtlSeconds
	urlWithExpired := fmt.Sprintf("%s%s%d", originalURL, "&expires=", expires)

	//parse the url
	parsedURL, err := url.Parse(urlWithExpired)
	if err != nil {
		return "", errors.New("failed parsing URL")
	}

	//build a json from the url
	jsonStr, err := buildJSONFromURLV2(parsedURL, supportedParams)
	if err != nil {
		return "", err
	}

	//create a signature
	signatureV2, err := computeHmac256(jsonStr, secret)
	if err != nil {
		fmt.Println("Failed to computeHMAC256 for url %s. err: %+v", jsonStr, err)
		return "", errors.New("fail to computeHMAC256 for url")
	}

	//add the signature to the url
	signedURL = fmt.Sprintf("%s%s%s", urlWithExpired, "&signature_v2=", signatureV2)

	return signedURL, nil

}

// this function builds a json from a given click url.
// 署名する準備ができている json の文字列表現を返します。
func buildJSONFromURLV2(parsedURL *url.URL, supportedParams []Param) (string, error) {
	//initiate an empty json in the structure [[key-1,val-1],[key-2,val-2]...[key-n,val-n]]
	var jsonData [][2]string

	//add the url host domain to the json
	domain := parsedURL.Host
	param := [2]string{"link_domain", domain}
	jsonData = append(jsonData, param)

	//add the path (app-id or template-id) to the json
	path := parsedURL.Path
	if len(path) > 1 {
		param := [2]string{"link_path", path[1:]}
		jsonData = append(jsonData, param)
	}

	//loop over the ordered list of supported parameters and add them to the json
	for i := 0; i <len(supportedParams); i++ {name := supportedParams[i].Name val := parsedURL.Query().Get(name) if len(val) > 0 {
			param := [2]string{name, val}
			jsonData = append(jsonData, param)
		} else if supportedParams[i].Mandatory {
			return "", errors.New("missing mandatory param: " + name)
		}
	}

	//generate string representation of the json object
	jsonObj, _ := json.Marshal(jsonData)
	return strings.ToLower(string(jsonObj)), nil
}

func main() {

	supportedParams, err := LoadSupportedParams()
	if err != nil {
		fmt.Println("Error: ", err)
		os.Exit(1)
	}

	var secretKey = "tqJU4Qd/eFTEWfqW7KCG9asDO0bmZoFzv8GY3VPSPAM="
	var clickTtlSeconds int64 = 60
	var originalUrl = "https://yourbrand.onelink.me/qsWL?pid=mediasource_int&advertising_id=12345678-1234-1234-1234-123456789012&clickid=1234&af_ad_type=video&af_adset=MMP&af_siteid=my_site&af_viewthrough_lookback=2h&c=my_campaign"

	fmt.Println("Original URL: ", originalUrl)

	signedUrl, err := signURLV2(originalUrl, secretKey, clickTtlSeconds, supportedParams)
	if err != nil {
		fmt.Println("Error: ", err)
		os.Exit(1)
	} else {
		fmt.Println("Signed URL: ", signedUrl)
	}
}

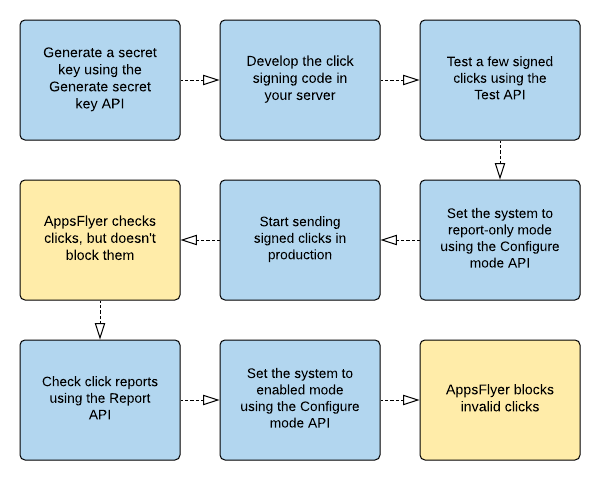

Generate secret keyのメソッド

POST https://hq1.appsflyer.com/api/p360-click-signing/secret?ttlHours=<ttlHours>

curl --location --request POST 'https://hq1.appsflyer.com/api/p360-click-signing/secret?ttlHours=36' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}'

{
	"secret-key-id": "59ad6547-affc-45eb-a6c9-9805f88ee755",
	"secret-key": "zGW6Rhrmb8+vuhHtL/Kp6rW5Ci9PNsjH1J5MGO9SIeg=",
	"expiration": 1610533263
}

Revoke secret keyのメソッド

DELETE https://hq1.appsflyer.com/api/p360-click-signing/secret/<secret-id>

curl --location --request DELETE 'https://hq1.appsflyer.com/api/p360-click-signing/secret/59ad6547-affc-45eb-a6c9-9805f88ee755' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}'

Testのメソッド

POST https://hq1.appsflyer.com/api/p360-click-signing/test

curl --location --request POST 'https://hq1.appsflyer.com/api/p360-click-signing/test' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}' \
--header 'Content-Type: application/json' \
--data-raw '{
   "url": "https://app.appsflyer.com/com.app.id?pid=adnetwork_int&c=my_campaign&clickid=sdkfjasksjskdfj9845weh&af_site_id=12345&expires=1597657118&signature=8fnDVzZP_WRZnv3KNJaREOEfvB5p9oRc_XlKEvUo8gk"
}'

{
	"test-status":"Passed / Failed",
	"message": "Invalid signature"
}

Configure modeのメソッド

POST https://hq1.appsflyer.com/api/p360-click-signing/config/mode/<mode>

curl --location --request POST 'https://hq1.appsflyer.com/api/p360-click-signing/config/mode/report-only' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}'

Configure circuit breakerのメソッド

POST https://hq1.appsflyer.com/p360-click-signing/config/circuit-breaker

curl --location --request POST 'https://hq1.appsflyer.com/api/p360-click-signing/config/circuit-breaker' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}'
--data-raw '{
"status":"enabled"
}'

Get configurationのメソッド

GET https://hq1.appsflyer.com/api/p360-click-signing/config

curl --location --request GET 'https://hq1.appsflyer.com/api/p360-click-signing/config' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}'

{
	"mode": "report-only",
	"active-key-ids": [
		{
			"secret-key-id": "59ad6547-affc-45eb-a6c9-9805f88ee755",
			"expiration": 1610533263
		}
	],
	"excluded-app-ids": [
		"app-id-1", 	"app-id-2"
	]

}

Reportのメソッド

GET https://hq1.appsflyer.com/api/p360-click-signing/report

curl --location --request GET 'https://hq1.appsflyer.com/api/p360-click-signing/report?start-date=2021-01-07T07&end-date=2021-01-17T12' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}' \

Exclude appのメソッド

POST https://hq1.appsflyer.com/api/p360-click-signing/config/excluded-app/<app-id>

curl --location --request POST 'https://hq1.appsflyer.com/api/p360-click-signing/config/excluded-app/appname.com' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}'

Remove excluded appのメソッド

DELETE https://hq1.appsflyer.com/api/p360-click-signing/config/excluded-app/<app-id>

curl --location --request DELETE 'https://hq1.appsflyer.com/api/p360-click-signing/config/excluded-app/appname.com' \
-H 'Authorization: Bearer {API V2.0 token available to the admin in the dashboard.}'

package sign;

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import java.security.InvalidKeyException;
import java.security.NoSuchAlgorithmException;
import java.util.Base64;

.
.
.

String clickUrl = "https://app.appsflyer.com/com.app.id?pid=adnetwork_int&c=my_campaign&clickid=sdkfjasksjskdfj9845weh&af_site_id=12345";
String secretKey = "secret_key";
int ttlMinutes = 5;


//add expiration to the click URL
long expiration = System.currentTimeMillis() + (60000L * ttlMinutes);
clickUrl += "&expires="+expiration;

//create a SecretKey object from the given key string
SecretKeySpec signingKey = new SecretKeySpec(secretKey.getBytes(), "HmacSHA256");
Mac mac = Mac.getInstance("HmacSHA256");
mac.init(signingKey);

//generate a signature from the click url and encode it with base64 without padding
String generatedSignature =
Base64.getUrlEncoder().withoutPadding().encodeToString(mac.doFinal(clickUrl.getBytes()));

//add the signature to the click URL
String signedClickUrl = clickUrl + "&signature=" + generatedSignature;

1時間に90%以上のクリックの署名検証が失敗した場合、クリック署名の検証を停止してreport-onlyモードに戻します。

これは、潜在的な技術的問題から貴社のトラフィックを保護し、異常なトラフィックの原因を見つけるための仕様です。

• 署名が想定通りに機能しており、クリックが正しくブロックされていることがわかった場合には、configure circuit breakerのメソッドを使ってcircuit-breakerを無効にしてください。
• もしもクリックが誤ってブロックされていることがわかった場合：
  1. get configurationのメソッド を使ってクリック署名の設定を確認し、有効なシークレットキーを使用していることを確認してください。
  2. クリック署名レポートを使うと、ブロックされたクリックの詳細を確認し、無効と判定されたクリックの発生元（代理店 / アプリID）とその理由を調査可能です。
• 一般的ではない連携などが原因で特定のアプリにのみ問題が見つかった場合には、exclude appのAPIを使ってそのアプリをクリック署名の検証対象から除外してください。
• 設定周りに問題が見つかった場合には：
  1. report-onlyモードの実行を続けてください。
  2. 貴社側でのクリック署名のプロセスを修正してください。
  3. クリック署名レポートの結果を確認して、 クリックが想定通り認証されていることが確認できた場合には、再度クリック署名の検証を有効化してください。
