Data Collaboration Platform (DCP) - Configure collaboration measurement

At a glance: Learn how to configure DCP to perform SKU-level attribution based on the conversion, engagement, and campaign mapping data.

Overview

After preparing the conversion, engagement, and campaign-mapping data, you can configure DCP to use it for measurement and attribution.

The configuration process is comprised of:

Access collaboration measurement

  1. In AppsFlyer, from the side menu, go to Collaborate > Data Clean Room.
  2. On the Data Collaboration Platform page, select the relevant collaboration.

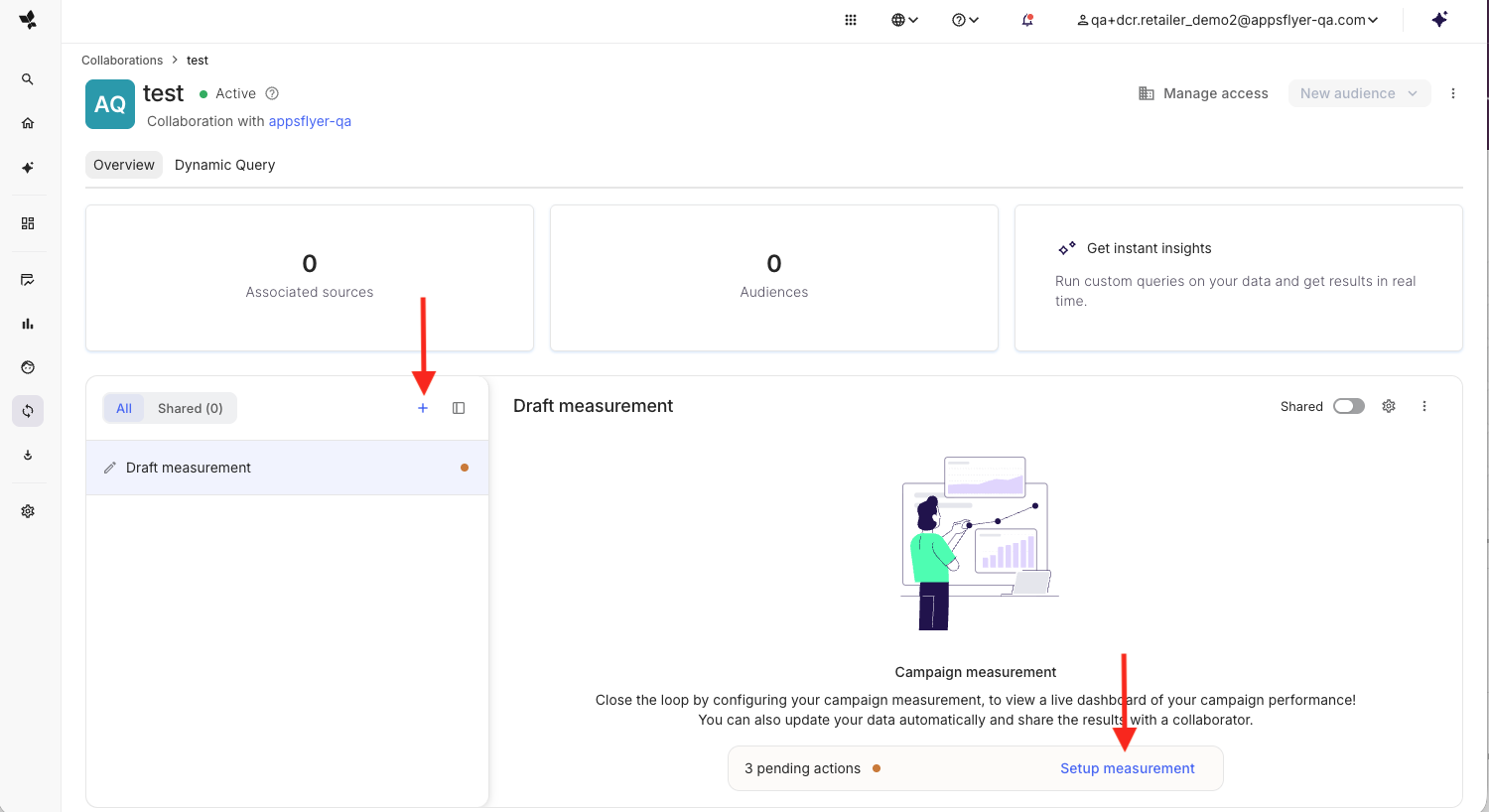

  3. At the bottom of the collaboration page, click Set up measurement (If the button is disabled, set up the data sources and audiences of the collaboration.)
  4. On the Manage measurement page, choose on-site icon.png  On-site or  off-site icon.png  Off-site as the activation type.
  5. Continue to set up the collaboration measurement.

Assign configuration task

The configuration process includes four key tasks: conversion, engagement, campaign mapping, and lookback window configuration.

These tasks are assigned between collaborators to ensure data privacy and reflect the split in responsibilities. For example, one collaborator may handle engagement data while the other handles conversions. Collaborators only have access to the data they manage.

As the configuration owner, assign the configuration tasks based on where conversions and engagements occur:

  • Conversion task – Assign to the collaborator whose platform hosts conversions.
  • Campaigns task – Assign to the collaborator whose platform drives conversions.
  • Engagements task – Assign to the collaborator where user engagement occurs.
  • Lookback window task – Automatically assigned to the collaboration owner. You may optionally assign the other collaborator.

Assign configuration task to a collaborator

To assign any of the above tasks, follow the steps below:

  1. Go to collaboration measurement, see Access collaboration measurement.
  2. In each of the four tasks above, from the Assignee list, select the collaborator who will handle the task.

Remove configuration task assignment from a collaborator

In some cases, it may be necessary to revoke a configuration task assignment from a collaborator. When the collaboration owner removes an assignment, the following occurs:

  • The collaborator immediately loses access to the unassigned task.
  • Any configuration previously provided by the collaborator for that task is discarded.
  • The collaboration measurement is stopped.

To remove a configuration task assignment follow the steps below:

  1. Go to collaboration measurement, see Access collaboration measurement.
  2. In the relevant configuration step, from the Assignee list, remove the assigned collaborator.

Configure on-site measurement

After the configuration tasks are assigned, you can proceed with configuring the tasks assigned to you. The onsite configuration process varies depending on the data access mode.

  • If you are using custom file sources to access conversion, engagement, and campaign mapping data, you must specify how DCP should access each file in your cloud service and define the relevant schema fields.
  • If you are using in-app events sent from the AppsFlyer SDK to access conversion and engagement data, you only need to provide the app and event names.

Set up campaign-mapping data

After selecting on-site activation, continue setting up the campaign mapping data source.

Prerequisite: Before you set up the mapping source in DCP, create a campaign mapping custom source and upload it to your cloud service. For more information about the campaign mapping schema and instructions on creating a custom source and connecting it to a cloud service, see Prepare campaign mapping source.

To set up the campaign mapping source on DCP, perform the following:

  1. Go to on-site collaboration measurement, see Access collaboration measurement.
  2. Click Campaigns.
  3. On the Campaigns dialog, click on + New campaign source:
  4. In the New campaign source dialog that appears, enter the name of the campaign mapping source in the Source name field according to the following requirements and guidelines.
  5. Click Next.
  6. Under Set source location, select the connection from which the source is accessed.
    • If your account does not have connections defined, the New connection dialog will open, prompting you to create one.
    • If you have existing connections but want to use a new one, open the Select connection list and select + New connection.
  7. Set the source access details according to the connected cloud service:
  8. Click Next.
  9. Under Configure source structure, map the fields in your campaign mapping source to their corresponding DCP types. This mapping enables DCP to identify the source data fields.
  10. Click Save. The campaign_mapping source created message is displayed.

    Finder 2025-01-27 12.56.35.png

  11. In the Campaign dialog that appears, under Align collaborator names, map the collaborators' names as they appear in your campaign mapping source to the names found in AppsFlyer SalesforceDB.

    The alignment is necessary because there might be multiple collaborators in the campaign mapping source. In such cases, DCP must identify collaborators by their AppsFlyer SalesforceDB designation to correctly assign their campaign results.

    To align the collaborator name follow this step:

    • For each SalesforceDB collaborator name that appears in the ValueFound read-only field, assign a corresponding name from the list of collaborators’ names in the campaign mapping source.

Set up conversion data

After setting up the campaign mapping source, continue by setting up the conversion source.

Prerequisite: Before you set up the conversion source in DCP, you must create a conversion source file and upload it to your cloud service. For more information about the conversion source schema and instructions on creating a custom source and connecting it to a cloud service, see Prepare custom source files for engagements and conversions.

Alternatively, you can integrate the AppsFlyer SDK into your app and let it send in-app conversion events to DCP. For more information about the in-app events structure and how to create them, see Prepare in-app events for conversions and engagements events section of this document.

To set up the conversion source in DCP, perform the following:

  1. Go to on-site collaboration measurement, see Access collaboration measurement.
  2. Click Conversions.
  3. On the Conversions dialog, select the conversion source type: in-app events or custom file.
    • In-app events — The origin of the conversion event data is the AppsFlyer SDK integrated into your app. The SDK sends conversion events in real time from your app whenever the user performs a converting activity. For more information about the in-app events structure and how to create them, see Prepare in-app events for conversions and engagements.
    • Your source — The origin of the conversion events is a custom source file stored in your cloud. For more information about the conversion custom source, see Prepare custom source files for engagements and conversions.
  4. Depending on your selection enter the following details to configure the conversion source.
    • In-app events:
      1. Select the app that sends the in-app events containing the conversion data.
      2. In the Select conversion event list, select which of the in-app events sent by the AppsFlyer SDK is the conversion event. Each SDK event translates to a row in the conversion source.
      3. In the Advertised item (SKU) field, choose the parameter that contains the array of the conversion event SKUs.
    • Your source:
      1. Click on + New conversion source.
      2. In the New conversion source dialog, enter the conversion source's name in the Source name field according to the requirements and guidelines.
      3. Click Next.
      4. Under Set source location, select the connection from which the source is accessed.
        • If your account does not have connections defined, the New connection dialog will open, prompting you to create one.
        • If you have existing connections but want to use a new one, open the Select connection list and select + New connection.
      5. Set the source access details according to your cloud service:
      6. Click Next.
      7. Under Configure source structure, map the fields in your conversion data source to their corresponding DCP types. This mapping enables DCP to identify the source data fields.
  5. Click Save. The conversion source created message is displayed.

    Preview 2025-01-27 14.25.27.png

Set up engagement data

After setting up the conversion source, continue by setting up the engagement source.

Prerequisite: Before you set up the engagement source in DCP, you must create an engagement source file and upload it to your cloud service. For more information about the engagement schema and instructions on creating a custom source and connecting it to a cloud service, see Prepare custom source files for engagements and conversions.

Alternatively, you can integrate the AppsFlyer SDK into your app and send engagement events to DCP. For more information about the in-app events structure and how to create them, see Prepare in-app events for conversions and engagements.

To set up the engagement source on DCP, follow these :

  1. Go to on-site collaboration measurement, see Access collaboration measurement.
  2. Click Engagements.
  3. On the Engagements dialog, select the engagement source type: in-app events or custom file.
  4. Depending on your selection enter the following details to configure the engagement source.
    • In-app events:
      1. Select the app that sends the in-app events containing the engagement data.
      2. In Select ad engagement event, select which of the events sent by the AppsFlyer SDK is the event that includes engagement data. Each such event sent by the SDK translates to a row in the engagement source.
    • Your source:
      1. On the Engagements dialog, click on + New engagement source.
      2. In the New engagement source dialog, enter the conversion source's name in the Source name field according to the requirements and guidelines.
      3. Click Next.
      4. Under Set source location, select the connection from which the source is accessed.
        • If your account does not have connections defined, the New connection dialog will open, prompting you to create one.
        • If you have existing connections but want to use a new one, open the Select connection list and select + New connection.
      5. Set the source access details according to your cloud service:
      6. Click Next.
      7. Under Configure source structure, map the fields in your engagement data source to their corresponding DCP types. This mapping enables DCP to identify the source data fields.
  5. Click Save. The engagement source created message is displayed.

    Figma 2025-01-27 14.28.33.png

Set Lookback window

After setting up the engagement source, continue by setting up the lookback window.

The lookback window is the maximum period during which an engagement (click or impression) can be considered for attribution to a conversion event. It specifies how many days back DCP searches for relevant engagements to match a particular conversion.

To set the lookback window, follow these steps:

  1. Go to on-site collaboration measurement, see Access collaboration measurement.
  2. Click Lookback window.
  3. In the Click-through or View-through lookback window sliders, drag the pointer to choose the window duration in days.
  4. Click Save.

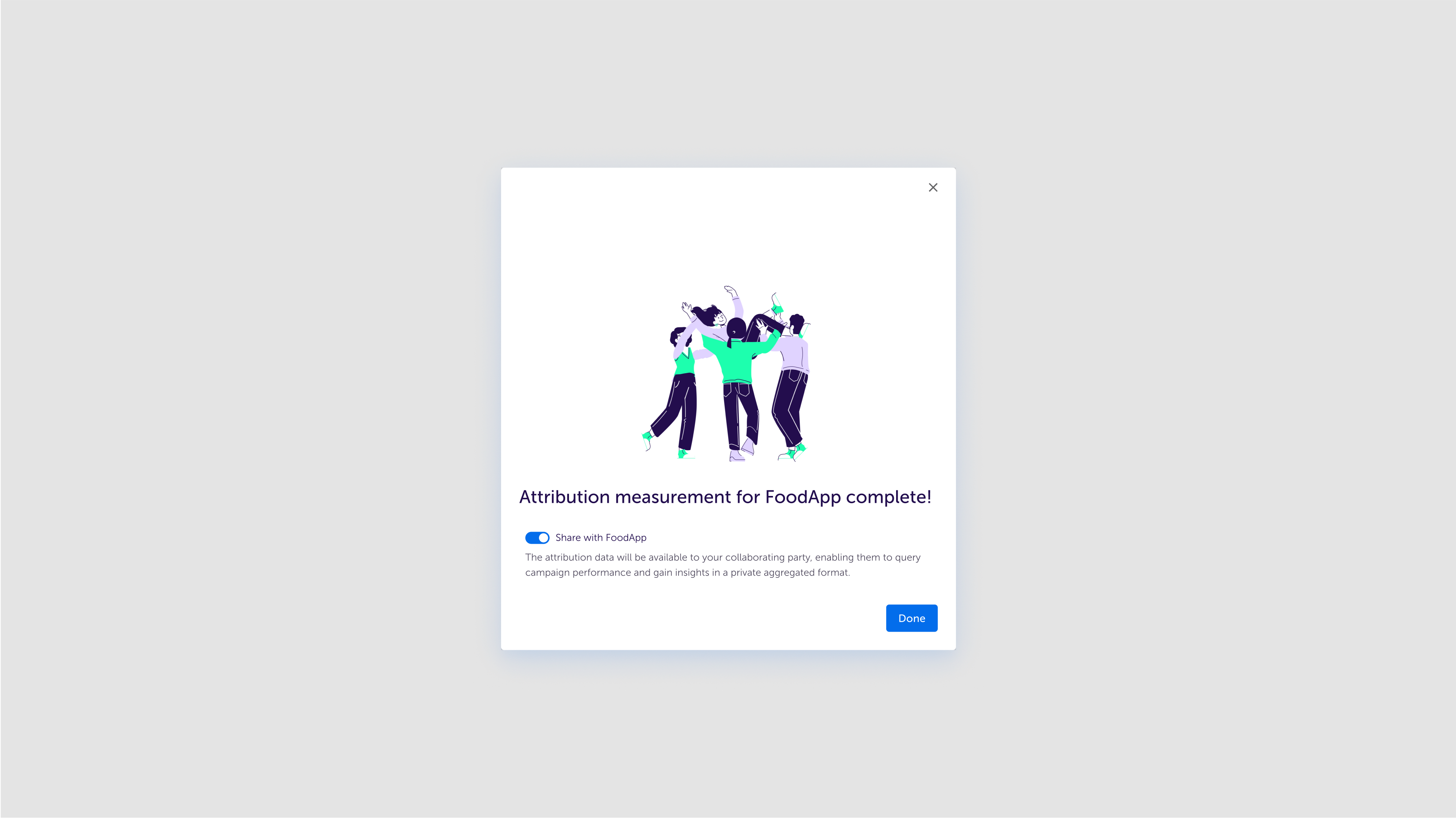

Share attribution data

After the configuration process is successfully completed, you can permit your collaborator to access the attributed measurement results by turning on the share toggle displayed in the completion dialog.


Configure off-site measurement

The off-site configuration process varies depending on the configuration step.

  • For the campaign mapping step, specify how DCP should access the custom data source in the cloud service and define the relevant schema fields.
  • For the conversion step, provide the details of the in-app events sent from the AppsFlyer SDK.

Set up campaign-mapping source

After selecting off-site activation, continue setting up the campaign mapping data source.

Prerequisite: Before you set up the mapping source in DCP, create a campaign mapping custom source and upload it to your cloud service. For more information about the campaign mapping schema and instructions on creating a custom source and connecting it to a cloud service, see Prepare campaign mapping source.

To set up the campaign mapping source on DCP, perform the following:

  1. Go to off-site collaboration measurement, see Access collaboration measurement.
  2. Click Campaigns.
  3. In the Campaigns dialog, click on + New campaign source:
  4. In the New campaign source dialog that appears, enter the name of the campaign mapping source in the Source name field according to the following requirements and guidelines.
  5. Click Next.
  6. Under Set source location, select the connection from which the source is accessed.
    • If your account does not have connections defined, the New connection dialog will open, prompting you to create one.
    • If you have existing connections but want to use a new one, open the Select connection list and select + New connection.
  7. Set the source access details according to the connected cloud service:
  8. Click Next.
  9. Under Configure source structure, map the fields in your campaign mapping source to their corresponding DCP types. This mapping enables DCP to identify the source data fields.
  10. Click Save. The campaign_mapping source created message is displayed.

    Finder 2025-01-27 12.56.35.png

  11. In the Campaign dialog that appears, under Align collaborator names, map the collaborators' names as they appear in your campaign mapping source to the names found in AppsFlyer SalesforceDB.

    The alignment is necessary because there might be multiple collaborators in the campaign mapping source. In such cases, DCP must identify collaborators by their AppsFlyer SalesforceDB designation to correctly assign their campaign results..

    To align the collaborator name follow this step:

    • For each SalesforceDB collaborator name that appears in the ValueFound read-only field, assign a corresponding name from the list of collaborators’ names in the campaign mapping source.

Set up conversion source

After setting up the campaign mapping source, continue by setting up the conversion source.

Prerequisite: Integrate the AppsFlyer SDK into your app and set up in-app conversion events. For more information about the in-app events structure and how to create them, see Prepare in-app events for conversions and engagements.

To set up the conversion source in DCP, perform the following:

  1. Go to off-site collaboration measurement, see Access collaboration measurement.
  2. Click Conversions.
  3. In the Conversions dialog, select the app that sends the in-app events containing the conversion data.
  4. In Select conversion event, select which of the in-app events sent by the AppsFlyer SDK is the conversion event. Each event sent by the SDK translates to a row in the conversion source.
  5. In Advertised item (SKU), choose the parameter that contains the array of the conversion event SKUs.
  6. Click Save. The conversion source created message is displayed.

    Preview 2025-01-27 14.25.27.png

Set the Lookback window

After setting up the engagement source, continue by setting up the lookback window.

The lookback window is the maximum period during which an engagement (click or impression) can be considered for attribution to a conversion event. It specifies how many days back DCP searches for relevant engagements to match a particular conversion.

To set the lookback window, follow these steps:

  1. Click Lookback window.
  2. In the Click-through or View-through lookback window sliders, drag the pointer to choose the window duration in days.
  3. Click Save.

Share attribution data

After the configuration process is completed successfully, you can permit your collaborator to access the attributed measurement results by turning on the Share toggle in the completion dialog.
