At a glance: 360 Ads is an AppsFlyer ad network integrated partner.
Setting Up 360 Ads
Go to the dashboard of your app and click on Integrated Partners on the left bar.
Enter "360_int" in the search field and click on its logo to open 360 Ads configuration window.
360 Ads configuration window includes 3 active tabs: Integration, Attribution link, and Permissions. Click on the items below to read about the tabs setup.
For a detailed description of the Partner Configuration Window Header, click here.
- The General Settings step in the Integration tab is mandatory for all partners
- All the rest of the steps are either descriptive or optional
On the first visit here, you will need to toggle below. ON the Activate Partner button to enable setup of the integration tab's parameters. The toggle MUST be ON for as long as you work with the partner.
For more details about partner activation please click here.
Enable View-Through attribution
Toggle this to ON if you want to attribute view-through installs from 360 Ads. The view-through lookback slider is available on the attribution link tab (described below).

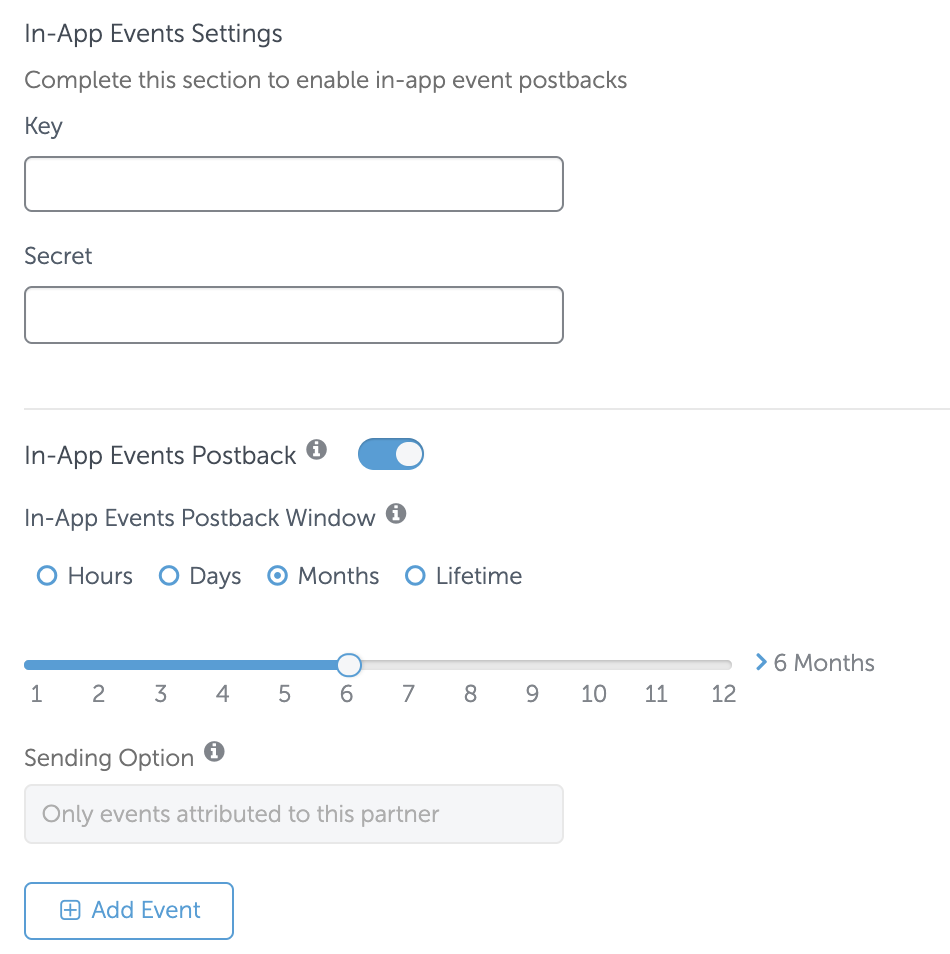

In-app events settings
In this section you can map your AppsFlyer events with 360 Ads via postbacks.
Key and Secret
360 Ads connects with AppsFlyer via a unique Key and Secret. If you don't already have the Key and Secret, you must obtain it from 360 Ads to continue with the integration.
- Set the 360 Ads Key and Secret here
- Toggle In-App Event Postbacks to ON
- Click Add Event to add an SDK Event to the list
- Fill in the following parameters:
|SDK Event Name||The name of the event, as received by AppsFlyer either from the SDK integrated in your app, or from server to server events.
Tip - If you don't see the event you want in the list, make sure to activate the event on a device with a non-organic installation and recheck.
|Partner Event Identifier||The unique name or ID of each event as defined on 360 Ads side.
Obtain the corresponding Event ID from 360 Ads and set in the text field.
When unchecked - AppsFlyer sends all the parameters of the rich in-app event to the partner, except for the revenue parameter, which is contained in the af_revenue parameter.
When checked - AppsFlyer sends all the parameters including the revenue value (if it exists in the event).
Attribution Link Tab
This tab is divided into different sections:

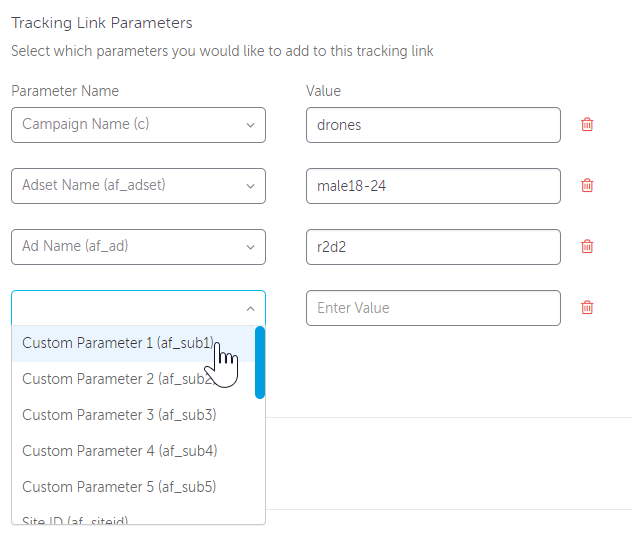

Attribution Link Parameters
In this section, select which parameters you want to add to the attribution link.
Adding parameters to the attribution link here enables you to later perform thorough drill-down analyses. Parameters that are already defined on the attribution link can be edited by adding them and their new values here.
Campaign - add it to compare different campaigns running with 360 Ads.
Attribution link parameter: c
Adset - set ad set names to compare different ad sets within specific 360 Ads campaigns.
Attribution link parameter: af_adset
Ad Name - set ad set names to compare different creatives within specific ad sets within specific 360 Ads campaigns.
Attribution link parameter: af_ad
Site ID and Sub Site ID - set Site ID parameter to attribute installs to specific publishers. If many publishers exist, we advise on limiting the number of used site IDs and using the sub site ID parameter, to avoid exceeding the site ID limitations.
Attribution link parameters: af_siteid and af_sub_siteid
Subscriber Parameters - use any of the 5 subscriber parameters to insert useful values. Note that these parameters get parsed and appear in the raw data report, which makes them very handy for performing data aggregation or filtering.
Attribution link parameters: af_sub1, af_sub2, af_sub3, af_sub4, af_sub5
Add any other parameter to the attribution link simply by typing it in a new parameter box. For more information about AppsFlyer's Attribution Link Structure and Parameters.

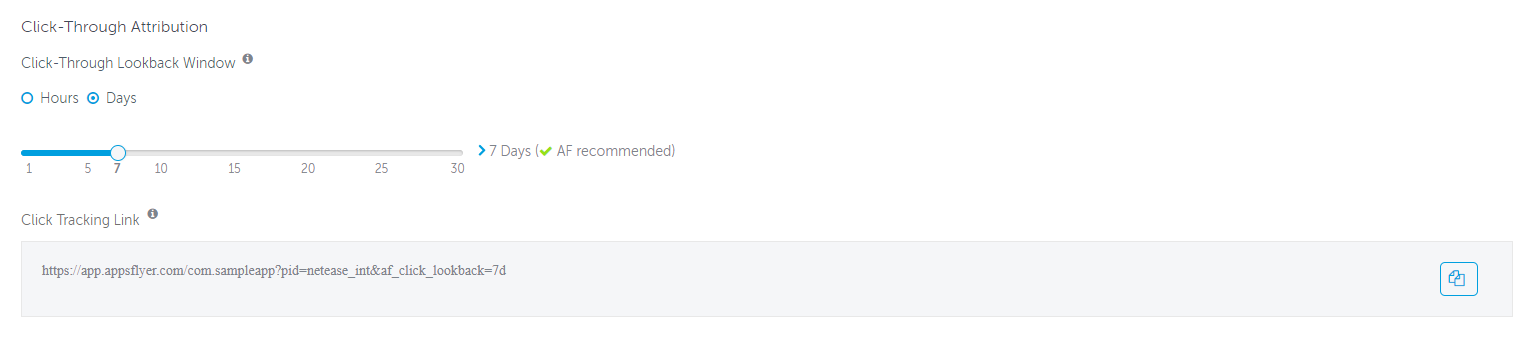

This slider allows you to set the maximum time from click to install. Only installs (first launches) that take place within the lookback window may be attributed to 360 Ads.
Attribution link parameter: af_click_lookback
More details about the click lookback window here.
Click Attribution Link
This is the attribution link that contains all the setup information you have set for it. Send it to 360 Ads to be activated when leads click on a corresponding ad.

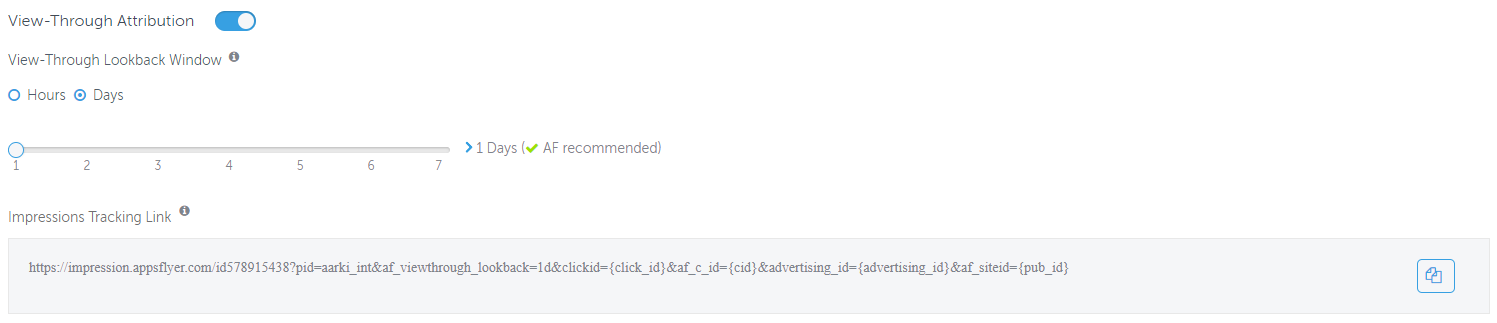

View-through attribution lookback window
This slider allows you to set the maximum time from impression to install. Only installs (first launches) that take place within this lookback window, following an ad impression, are attributed to 360 Ads, providing there was no other relevant ad click.
You can customize this value to 1-23 hours or 1-7 days.
Attribution link parameter: af_viewthrough_lookback
More details about the view-through attribution here.
Impressions attribution link
The impression attribution link contains similar attribution data to the click recording link (besides the different lookback window). Send it to 360 Ads to be activated when a corresponding ad is watched, usually for 1 second or more.
Cost data is not supported in the integration with this partner.
Ad Revenue Tab
Ad Revenue is not supported in the integration with this partner.

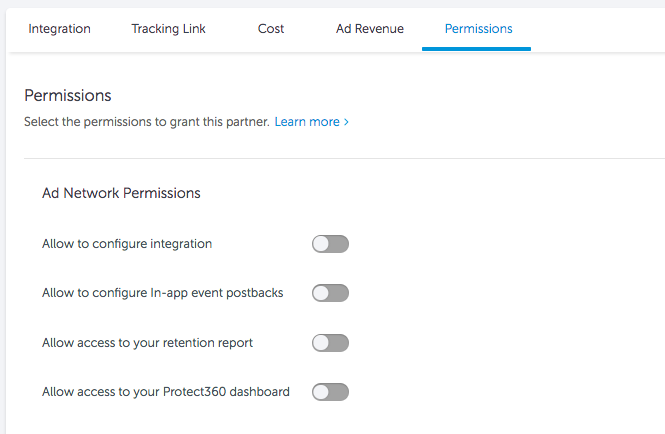

In this tab, you can select the permissions to grant 360 Ads, whether the partner acts as an ad network, agency or even both. Note that even if attribution is disabled for 360 Ads, the permissions tab is active and you can grant control to 360 Ads.
Ad Network Permissions
Use these toggles to give the ad network permissions to handle its own configuration for your app:
- Allow to configure integration - permit the partner to setup the integration tab (except in-app event postbacks)
- Allow to configure in-app event postbacks - permit the partner to setup in-app event postbacks mapping to itself on the integration tab
- Allow access to your retention report - only to the partner's own retention data
- Allow access to your Protect360 dashboard - only to the partner's own Protect360 data, and providing the feature is enabled for the advertiser
Learn more about granting ad network permissions.
