Unity Ads campaign configuration

Unity Ads, an AppsFlyer's integrated partner, is a video ad network for iOS and Android.

In addition to click-based mobile attribution, Unity Ads offers cost, ad revenue and view-through attribution, which you can record in AppsFlyer.

To configure your campaigns with Unity Ads, follow the steps below.

Setting up Unity Ads

Go to the dashboard of your app and click on Integrated Partners on the left bar.


Enter "Unity Ads" in the search field and click on its logo to open the Unity Ads configuration window.

The Unity Ads configuration window includes 5 tabs: Integration, Attribution link, Cost, Ad Revenue, and Permissions. Click on the items below to read about the tabs setup.

For a detailed description of the Partner Configuration Window Header, click here.


  • The General Settings step in the Integration tab is mandatory for all partners
  • All the rest of the steps are either descriptive or optional

Integration tab

Activate partners

On the first visit here, you will need to toggle ON the Activate Partner button to enable setup of the integration tab's parameters. The toggle MUST be ON for as long as you work with the partner.
For more details about partner activation please click here.

General settings

Sending Device ID (Advertising ID) to Unity

At the top of the integration tab is a note that says that Unity Ads requires AppsFlyer to send them a postback with the device ID for every install.


AppsFlyer sends the device ID automatically. You don't have to do anything on your end to send the device ID for every install.

Unity Ads Game ID

Unity Ads requires connecting with AppsFlyer via a unique game ID. If you do not know yours, you can obtain it directly from Unity Ads or you can find it once you have uploaded the game under the Acquire tab, as in the screenshot below.

Enable View-Through Attribution

Toggle this to ON if you want to attribute view-through installs from Unity Ads. The view-through lookback slider is available on the attribution link tab (described below).

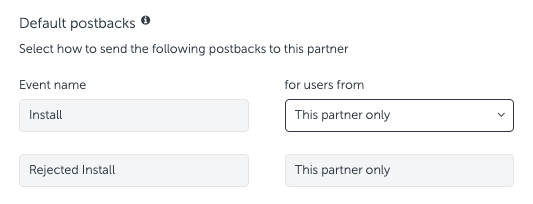

Default postbacks

AppsFlyer can send automatic postbacks to Unity Ads following user installs and re-engagements. Use this section to define the source of the users that allow sending these postbacks.


Select Only events attributed to this partner for events coming only from users attributed to Unity Ads.
Select Events attributed to any partner or organic to have your entire user base available to be reported to Unity Ads.


As an ALL-Installs network, Unity Ads prefers to receive postbacks for all new installs of your app from ANY source, including organic. It is recommended to select Events attributed to any partner to send all install postbacks to Unity Ads.

In-app events settings

In this section you can map your AppsFlyer events with Unity Ads via postbacks.


  1. Enter the game_id again.
  2. Toggle In-App Event Postbacks to ON.
  3. Select the Sending Option for all SDK defined events.
    - Only events attributed to this partner for events coming only from users attributed to this partner
    - Events attributed to any partner or organic to have your entire user base available to be reported to the partner
  4. Click Add Event to add an SDK Event to the list.
  5. Complete the following parameters:
Parameter Name Description
SDK Event Name The name of the event, as received by AppsFlyer either from the SDK integrated in your app, or from server to server events.
Tip - If you don't see the event you want in the list, make sure to activate the event on a device with a non-organic installation and recheck.
Partner Event Identifier The unique name or ID of each event as defined on the Unity Ads side.
Obtain the corresponding Event ID from Unity Ads and set in the text field.
Send Revenue When unchecked - AppsFlyer sends all the parameters of the rich in-app event to the partner, except for the revenue parameter, which is contained in the af_revenue parameter.
When checked - AppsFlyer sends all the parameters including the revenue value (if it exists in the event).

Attribution link tab

In this tab, you can create the attribution links you want to send to Unity Ads for attributing Unity Ads campaigns, ad sets or even single ads. Note that AppsFlyer DOES NOT save your generated partner's attribution links.


This tab is divided into different sections:

Attribution link parameters

In this section, select which parameters you want to add to the attribution link.

Adding parameters to the attribution link here enables you to later perform thorough drill-down analyses. Parameters that are already defined on the attribution link can be edited by adding them and their new values here.

  • Campaign - add it to compare different campaigns running with Unity Ads.
    Attribution link parameter: c
  • Adset - set ad set names to compare different ad sets within specific Unity Ads campaigns.
    Attribution link parameter: af_adset
  • Ad Name - set ad set names to compare different creatives within specific ad sets within specific campaigns Unity Ads.
    Attribution link parameter: af_ad
  • Site ID and Sub Site ID - set Site ID parameter to attribute installs to specific publishers. If many publishers exist, we advise on limiting the number of used site IDs and using the sub site ID parameter, to avoid exceeding the site ID limitations.
    Attribution link parameters: af_siteid and af_sub_siteid
  • Subscriber Parameters - use any of the 5 subscriber parameters to insert useful values. Note that these parameters get parsed and appear in the raw data report, which makes them very handy for performing data aggregation or filtering.
    Attribution link parameters: af_sub1, af_sub2, af_sub3, af_sub4, af_sub5

Add any other parameter to the attribution link simply by typing it in a new parameter box. For more information about AppsFlyer's Attribution Link Structure and Parameters.

Click-through attribution

This slider allows you to set the maximum time from click to install. Only installs (first launches) that take place within the lookback window may be attributed to Unity Ads.

Attribution link parameter: af_click_lookback

More details about the click lookback window here.

Click attribution link

This is the attribution link that contains all the setup information you have set for it. Send it to Unity Ads to be activated when leads click on a corresponding ad.

View-through attribution lookback window

This slider allows you to set the maximum time from impression to install. Only installs (first launches) that take place within this lookback window, following an ad impression, are attributed to Unity Ads, providing there was no other relevant ad click.

You can customize this value to 1-23 hours or 1-7 days.

Attribution link parameter: af_viewthrough_lookback

More details about the view-through attribution here.

Impressions attribution link

The impression attribution link contains similar attribution data to the click recording link (besides the different lookback window). Send it to Unity Ads to be activated when a corresponding ad is watched.
Read more about how Unity Ads defines clicks and views.

Cost tab

AppsFlyer gets cost details by API.

Geo Media source Campaign Adset Ad Site ID
Yes - Yes - Yes Yes
API dimensions supported

Before you begin:

  • In your Unity Ads dashboard, get your API credentials. You need:
    • API Key
    • Org ID

To enable Unity Ads cost API:

  1. In the integrated partner Cost tab, enable Get Cost Data.
  2. Complete the credential fields.
  3. Click Save Cost.
  4. Click Test Connection.
  5. If the message:
    • API connection verified displays:
      • You have successfully completed the procedure. API is active. AppsFlyer collects data from the partner 6 times a day, on average once every four hours.
    • Invalid Credentials displays, check the credentials and repeat the procedure.
    • Something went wrong, try again later.

For the full list of partners supporting cost data, click here.

Ad revenue tab

  • If you display ads in the app sent by the partner this section is relevant
  • About ad revenue attribution (ad monetization)

Before you begin:

  • Get the API credentials from the partner.  You need:
    • API key
    • Game ID

To get ad revenue data by API:

  1. Go to the Ad revenue tab.
  2. Enable Get ad revenue data.
  3. Complete the credential fields.
  4. Complete the Even Source.
  5. Click Save Ad revenue.
  6. Click Test Connection
  7. Do one of the following:
    1. If the message API connection verified displays, you have successfully completed the procedure. AppsFlyer collects the data from the partner once a day.
    2. If any other message displays, take corrective action in accordance with the status message.

Permissions tab

In this tab, you can select the permissions to grant Unity Ads, whether the partner acts as an ad network, agency or even both. Note that even if attribution is disabled for Unity Ads, the permissions tab is active and you can grant control to Unity Ads.

unity ads permissions

Use these toggles to give the ad network permissions to handle its own configuration for your app:

Ad network permissions

  • Allow to configure integration - permit the partner to setup the integration tab (except in-app event postbacks)
  • Allow to configure in-app event postbacks - permit the partner to setup in-app event postbacks mapping to itself on the integration tab
  • Allow access to your retention report - only to the partner's own retention data
  • Allow access to your aggregate loyal user data - only to the partner's own loyal user data
  • Allow access to your aggregate in-app events data - only to the partner's own in-app events data
  • Allow access to your aggregate revenue data - only to the revenue data attributed to the partner
  • Allow access to your Protect360 dashboard - only to the partner's own Protect360 data, and providing the feature is enabled for the advertiser

Learn more about granting ad network permissions.
